Product Overview

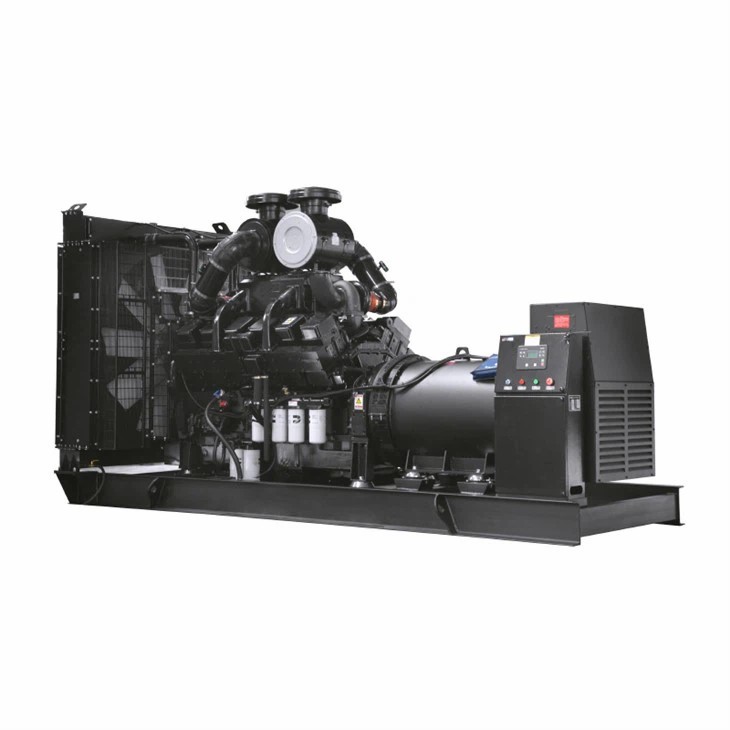

The Automatic Transfer Power System Diesel Generator is an industrial standby power solution with integrated automatic mains failure detection and generator starting system, designed to ensure uninterrupted power supply for critical infrastructure such as hospitals, data centers, factories, commercial buildings, and telecom stations.
Key Features
Automatic Transfer Control
Integrated ATS controller continuously monitors utility power and triggers automatic generator start and load transfer when abnormalities are detected.
Stable Output
AVR and electronic governing systems maintain consistent voltage and frequency under varying load conditions.
Industrial Engine System
Heavy-duty diesel engine with optimized cooling and combustion design ensures reliable long-duration standby operation.
Intelligent Monitoring
Digital controller provides real-time data display, fault alarms, and automated operation management.
Technical Specifications
| Power Range | 10 kW – 2000+ kW |
| Voltage | 220V / 380V / 400V / 480V (customizable) |
| Frequency | 50Hz / 60Hz |
| Phase | Single / Three Phase |
| Engine Brands | Cummins / Perkins / Weichai / Yuchai / optional |
| Alternator | Stamford / Leroy Somer / equivalent |
| Controller | Smartgen / Deep Sea / ComAp (optional) |
| ATS System | Integrated automatic transfer system |
| Cooling System | Water-cooled radiator |
| Fuel Type | Diesel |
Applications
This ATS generator system is widely used in facilities requiring continuous and reliable backup power:
Hospitals and emergency medical systems
Data centers and server infrastructure
Industrial manufacturing plants
Construction and engineering sites
Mining and extraction operations
Commercial complexes and shopping malls
Telecommunications base stations
Transportation and logistics hubs
Manufacturing & Quality Control
Each generator set is manufactured under strict process control to ensure performance stability and long service life:
Incoming material inspection for engine, alternator, and electrical components
CNC precision machining for structural and mechanical parts
Controlled assembly process following standardized SOP
Electrical wiring inspection and insulation testing
Full-load testing to verify voltage stability and performance output
Protection system verification including overload, short circuit, and emergency stop functions
Optional Configurations
ATS Type
- Contactor type ATS
- Motorized breaker type ATS
- PC class ATS
ATS Rating
63A / 100A / 160A / 250A / 400A / 630A / 800A / 1000A / 1250A / 1600A / 2000A / 2500A / 3200A
Controller Options
- Smartgen (HGM series)
- Deep Sea (DSE series)
- ComAp (InteliGen / InteliLite)
Engine Options
Cummins / Perkins / Weichai / Yuchai
Alternator Options
Stamford / Leroy Somer / Marathon / equivalent
Voltage Options
220V / 230V / 240V / 380V / 400V / 415V / 440V / 480V
Frequency Options
50 Hz / 60 Hz
Phase Options
Single phase / Three phase
Enclosure Options
- Open type
- Silent canopy
- Containerized (20ft / 40ft)
FAQs
Q: What information is required to provide a quotation?
A: To prepare an accurate quotation, project requirements such as power rating, voltage, frequency, application environment, and optional configuration needs should be provided.
Q: What is the typical production lead time?
A: Lead time depends on power rating and configuration complexity. Standard configurations generally require shorter production cycles, while customized systems require additional manufacturing time.
Q: Can the generator be customized for different engine brands?
A: Yes, multiple engine brands are available and can be selected based on project budget, performance requirements, and regional service support.
Q: How is product quality ensured before shipment?
A: All units undergo structured inspection and load testing procedures before delivery to ensure compliance with industrial performance standards.
Q: What documentation is provided with the generator set?
A: Standard documentation includes technical datasheets, wiring diagrams, operation manuals, and maintenance guidelines.
Q: Can the system be integrated into existing power infrastructure?
A: Yes, the ATS system is designed for integration with existing electrical distribution systems based on project requirements and site conditions.
