Product Overview

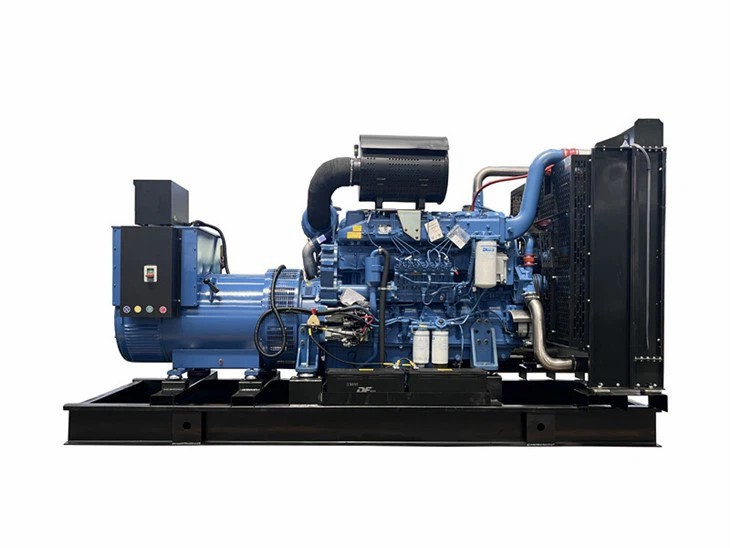

A low noise automatic transfer diesel generator designed for standby power systems in noise-sensitive environments, enabling automatic switching and stable backup power for commercial and critical facilities.
Specifications
| Power Range | 10 kW – 800 kW |
| Output Type | Single Phase / Three Phase |
| Voltage | 220V / 380V / 400V / 415V / Custom |
| Frequency | 50Hz / 60Hz |
| Engine Options | Cummins / Perkins / Weichai / Equivalent |
| Cooling System | Water-cooled |
| Starting System | Electric Start with ATS |
| Fuel Type | Diesel |
| Structure Type | Soundpro of Enclosure |
Product Features
Multi-Layer Acoustic Enclosure
Inner walls lined with sound-absorbing materials to reduce engine noise transmission during operation.
Isolated Airflow Silencing Channels
Air intake and exhaust are designed with baffle paths to reduce noise while maintaining cooling airflow.
ATS Dual Power Monitoring Circuit
Continuously detects grid voltage and frequency to trigger automatic generator start and load transfer.
Pre-Integrated ATS Control System
ATS and generator control panel are pre-wired and tested to ensure coordinated switching on site.
Delayed Start and Transfer Logic
Controller settings prevent unnecessary starts during short power interruptions.
Vibration Isolation Mounting System
Engine and alternator mounted on anti-vibration pads to reduce structural noise output.
Applications
Commercial Buildings
Used in offices, shopping centers, and business facilities requiring quiet backup power.
Healthcare Facilities
Suitable for environments where stable and low-noise operation is required.
Telecom and Data Centers
Provides backup power without excessive noise impact on surrounding equipment.
Urban Infrastructure
Used in locations with noise control requirements.
Customization Options
Noise level configuration based on site requirements
ATS capacity and switching configuration
Controller options (Smartgen / Deepsea)
Communication module (remote monitoring integration)
Fuel tank capacity for required backup duration
Enclosure structure and insulation level
Certifications
CE Certification
ISO 9001 Quality Management System
Other certifications available based on export requirements
Packaging and Delivery
Soundproof enclosure protected with reinforced packaging
01
Internal fixation to prevent vibration during transport
02
Container loading support
03
Sea and land transportation options
04
Lead time based on configuration and quantity
05
FAQs
Q: What should be confirmed before selecting a low-noise backup system?
A: Load requirements, installation environment, and noise restrictions should be clearly defined before configuration.
Q: Can you provide documentation for approval in regulated environments?
A: Yes, technical specifications and supporting documents can be provided for project review.
Q: How do you ensure consistency across multiple units in one project?
A: All units follow the same production and testing standards to maintain uniform performance.
Q: What support is available during system commissioning?
A: Remote technical guidance can be provided for setup and system adjustment.
Q: How do you handle long-term supply for project-based procurement?
A: We support stable production and repeat orders for ongoing project needs.
Q: What measures are taken before shipment to reduce operational risks?
A: Each unit is tested and inspected before delivery to ensure it meets confirmed specifications.
